11 Estimating \(R_{0}\)

Andrew Conlan (ajkc2@cam.ac.uk)

Aim: To compare final size and exponential growth estimators for \(R_{0}\) using simulated data.

Outline:

1. Introduction: models and data sets

2. Final size method

3. Regression method

4. RECON earlyR method

Important

All required data and script files can be downloaded here. Please download this ZIP file and extract the files to your working directory.

11.1 Introduction: models and data sets

In Epidemic Practicals 1, 2 & 3 you wrote functions to numerically solve and simulate the deterministic and stochastic SIR models. For this practical we have extended these functions to add a latent class and implement the SEIR epidemic model introduced in lectures. If you have time at the end of this practical you can use these functions to simulate your own “Outfluenza” and “Biggles” data and explore the performance of the final size and linear regression methods.

However, so we all get the same results, we have provided simulated epidemics of “Outfluenza” and “Biggles” from which we will estimate \(R_{0}\) using the final size, (log)-linear regression and the earlyR method from the R Epidemics Consortium (RECON, https://www.repidemicsconsortium.org/).

The simulated outbreaks are provided as line lists, a common instrument used to collect data on individual cases during an outbreak where the date of infection (or rather the notification of a case) is recorded along with other relevant epidemiological information. For our purposes, the date of notification is sufficient to reconstruct the epidemic curve and test our different estimators of \(R_{0}\).

Begin by reading in the line lists and converting the dates (stored as character strings) to date objects:

require(chron)
require(incidence)
# Load line lists of cases for simulated outbreaks
outfluenza1 <- read.table('Outfluenza1_cases.dat')
outfluenza1$x = as.Date(outfluenza1$x)

outfluenza2 <- read.table('Outfluenza2_cases.dat')
outfluenza2$x = as.Date(outfluenza2$x)

biggles <- read.table('biggles_cases.dat')
biggles$x = as.Date(biggles$x)

We are going to use the incidence package from RECON which has been written to simplify computing, visualising and modelling incidence of infectious disease from dated event data such as line lists.

To illustrate the key functions and concepts we will use incidence to construct daily incidence and cumulative incidence curves for the first outfluenza outbreak.

The main workhorse function is called incidence which converts a list of dates into an incidence object that bins cases into a given interval:

outfluenza1.i = incidence(outfluenza1$x,interval=1)

We can see a summary of the incidence object by simply typing the name of the variable:

outfluenza1.i

## <incidence object>
## [1183 cases from days 2019-02-24 to 2019-04-29]
##
## $counts: matrix with 65 rows and 1 columns
## $n: 1183 cases in total
## $dates: 65 dates marking the left-side of bins
## $interval: 1 day
## $timespan: 65 days
## $cumulative: FALSE

So, the outfluenza1 outbreak consists of 1183 cases over the course of 65 days. We have chosen to bin cases on a daily interval (which is also the default so we could have simply left out this argument and will do so from now on).

The incidence package provides custom plot functions for incidence objects:

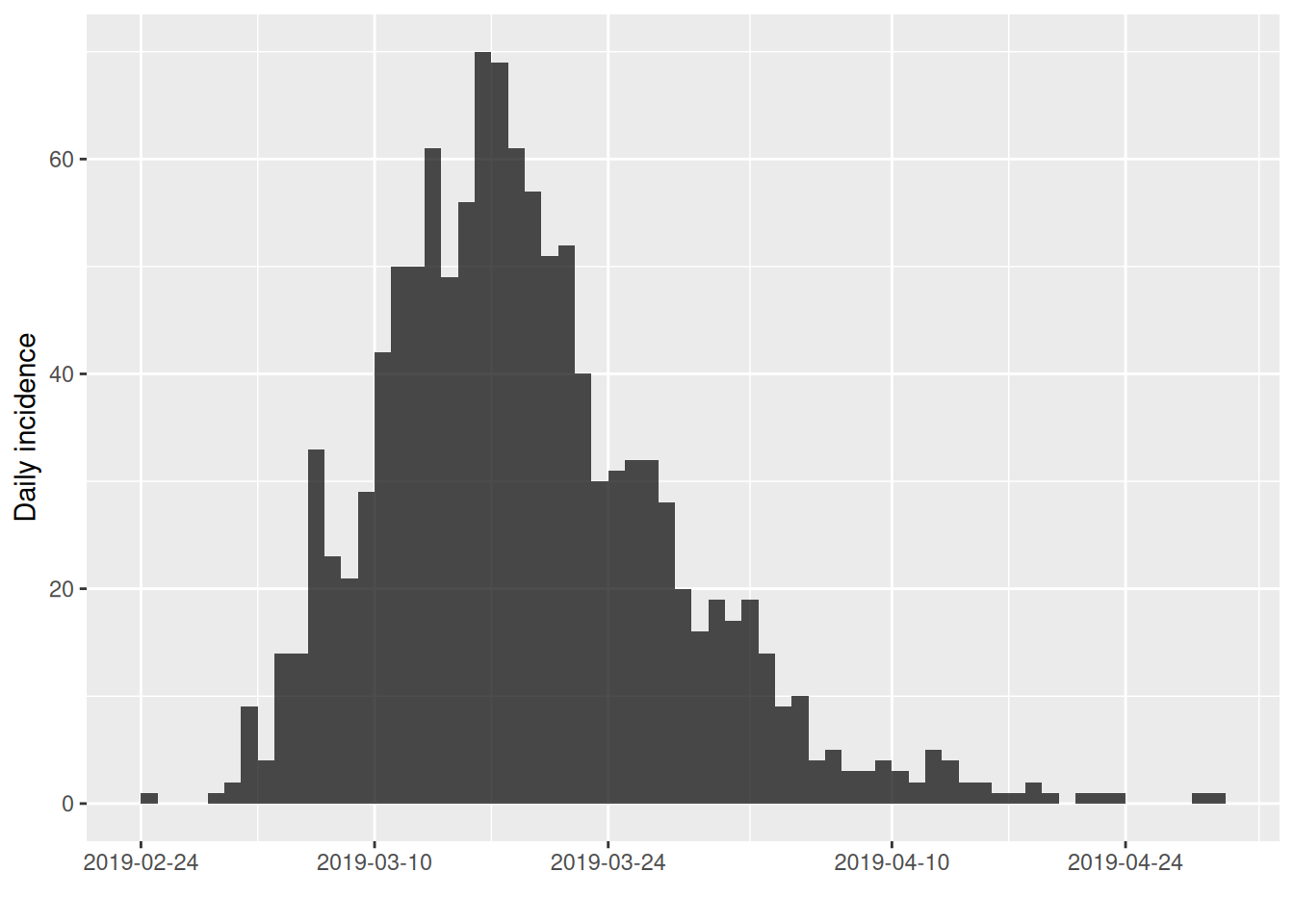

plot(outfluenza1.i)

Which should be familiar from the lectures.

You can try experimenting with different intervals to see how this affects the shape of the epidemic curve:

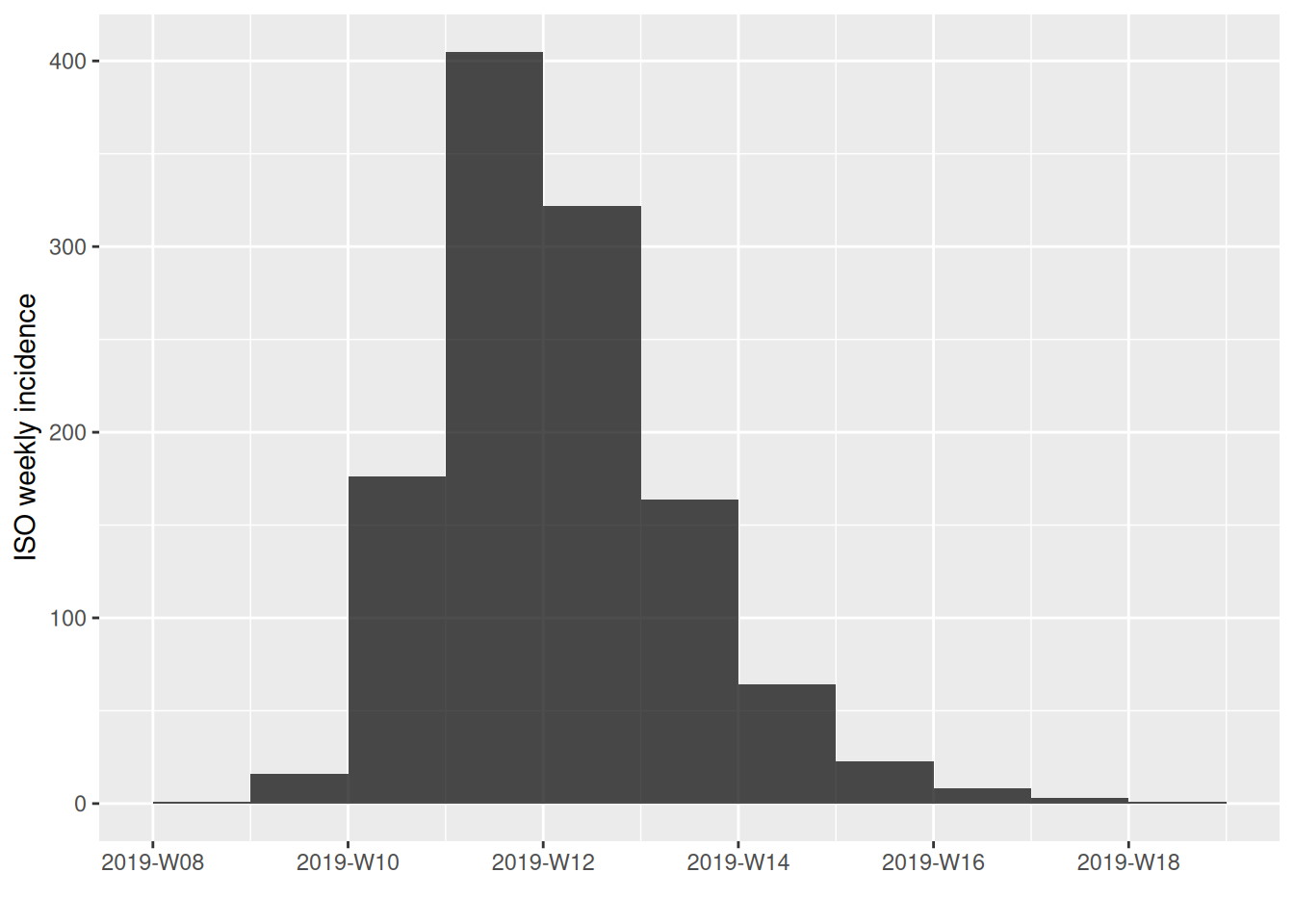

plot(incidence(outfluenza1$x,interval=7))

incidence also allows you to subset curves between start and end dates:

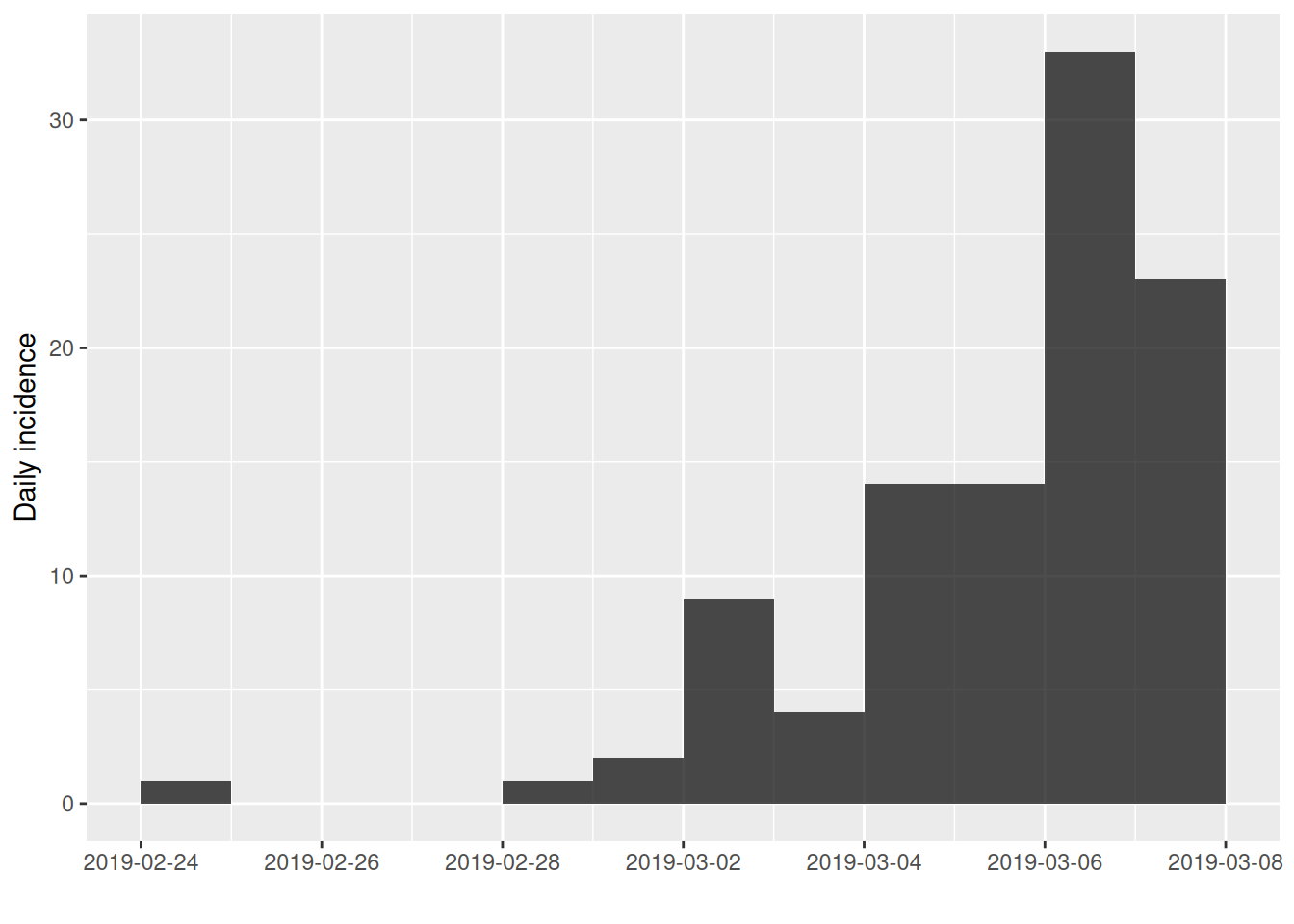

plot(subset(outfluenza1.i,from=outfluenza1$x[1],to=outfluenza1$x[100]))

Task

What is the significance of choosing the dates to subset in this way?

Solution

We have limited the graph to only plot the first 100 cases. We achieved this by using the date of the 100\(^{th}\) entry of the line list (outfluenza1$x) to set the upper limit.

The cumulate() function returns a the cumulative incidence curve:

plot(cumulate(outfluenza1.i))

Finally, you can convert an incidence object to a data frame by using the cast function data.frame():

outfluenza1.df = data.frame(outfluenza1.i)
head(outfluenza1.df)

##        dates counts
## 1 2019-02-24      1
## 2 2019-02-25      0
## 3 2019-02-26      0
## 4 2019-02-27      0
## 5 2019-02-28      1
## 6 2019-03-01      2

11.2 Final size method

Final size methods for \(R_{0}\) are in themselves a whole field of research. In this practical we will consider the utility of the basic deterministic “first estimate” also known as the final size formula:

\[\begin{equation} \tag{11.1} R_{0} = -\frac{\ln(1-z_{f})}{z_{f}} \end{equation}\]

where \(z_{f}\) is the total fraction of the population infected at the end of an epidemic in a closed population.

Task

Write a function R0final that returns the value of \(R_{0}\) for a given value of \(z_{f}\). Is there any restriction on the values that \(z_{f}\) can take for the final size equation to be valid? Your function should check that \(z_{f}\) takes a valid value and return a missing value (NA) when the final size equation is not defined.

Solution

R0final <- function(zf) {
    # zf must be proportion between 0 and 1
    # Trap for division by zero(zf=0.0)
    # Trap for log(1) (-Inf)
    if(zf<=0 || zf>=1.0) {
        return(NA)
    } else {
        return(-log(1-zf)/zf)
    }
}

This formula is more commonly used to predict the final size (\(z_{f}\)) of an epidemic once we have an independent estimate of \(R_{0}\). This is less straightforward as we cannot solve equation (11.1) explicitly for \(z_{f}\). We can progress by rewriting (11.1) into a problem we can solve numerically:

\[\begin{equation} \tag{11.2} R_{0} + \frac{\ln(1-z_{f})}{z_{f}} = 0 \end{equation}\]

We can find the final size (\(z_{f}\)) corresponding to a given value of \(R_{0}\), by solving for the value(s) of \(z_{f}\) for which (11.2) is equal to zero. Finding the roots of a function is a common problem, so it should not surprise you that there is a R function to do the job. uniroot uses an numerical procedure to estimate the roots of an arbitrary function f within a fixed interval=c(lower,upper). We can use uniroot to write a function that returns the predicted final size for a given value of \(R_{0}\):

FinalSize <- function(R0) {
    return(uniroot(function(zf)
        {R0+log(1-zf)/zf},
        interval=c(.Machine$double.xmin,1.0))$root)
}

Check this function works by trying these test values on the R terminal:

FinalSize(1.2)

## [1] 0.3136976

FinalSize(1.0)

## [1] 6.103516e-05

FinalSize(0.9)

## [1] 6.103516e-05

The exact values may differ slightly between versions of R on different machines.

Note

Numerical methods are only accurate up to a specified precision or tolerance. This is fundamentally limited by the precision with which real numbers can be represented on a computer (that naturally works with integer or binary numbers). .Machine$double.xmin is the smallest number (or difference between two numbers) that can be stored in a given version of R. This value may change between versions and on different computer platforms (Windows, Mac OS, Linux…)

Task

Use the auxiliary functions of the incidence package and these new functions you have just written to estimate \(R_{0}\) for the exemplar outfluenza and biggles outbreaks. (Remember the school size for all of these outbreaks was 1300 children.)

Solution

R0final(incidence(outfluenza1$x)$n/1300)

## [1] 2.646094

R0final(incidence(outfluenza2$x)$n/1300)

## [1] 2.378981

R0final(incidence(biggles$x)$n/1300)

## [1] 2.463143

11.3 Regression method

In the lectures we discussed how the early phase of an epidemic can be approximately modelled by an exponential growth model:

\[\begin{equation} \tag{11.3} I(t) = I(0)e^{\Lambda t} \end{equation}\]

where the exponential rate can be related to \(R_{0}\) with the functional form depending on the structure of the epidemic model (in particular with respect to the distribution of latent and infectious periods). If we take logs of both sides of equation (11.3) and rearrange we get the equation of a straight line:

\[\begin{equation} \tag{11.4} \log(I(t)) = \Lambda t + \log(I(0)) \end{equation}\]

with y-intercept given by the constant \(\log(I(0)\) and slope \(\Lambda\). So, we can therefore obtain a first approximation to \(R_{0}\) simply by estimating the slope of the (logged) epidemic curve.

In principle, estimating \(R_{0}\) using this method could be as straightforward as plotting the incidence or cumulative incidence curve on logarithmic graph paper and fitting a “best-fit” line, or using the Solver in Excel. We can be a little more sophisticated and use the linear regression model (lm) function in R. lm() uses a least squares method, effectively optimising the fit of the straight line to minimise the squared error between the line and the data.

As the exponential approximation is only valid early in the epidemic, including data from the full epidemic curve would bias our estimate of \(R_{0}\). As discussed in the lecture we will use the first 100 cases. For a given simulation we need to select all the data-points up to the 100\(^{th}\) case. We can achieve this by sub setting the incidence object as before:

outflu1.sub<- data.frame(subset(outfluenza1.i,from=outfluenza1$x[1],to=outfluenza1$x[100]))

We fit a linear model (best straight line fit) to find the slope of the log cumulative cases as described in the lectures:

# Fit straight line to plot of biggles$t (time) and log of the cumulative cases (C)
outflu1.fit = lm(log(1+counts) ~ dates, data=outflu1.sub)

Note:

We add 1 to counts to handle any zero cases (this should not affect the estimated slope).

We can see the result of the regression by using the summary function:

summary(outflu1.fit)

##
## Call:
## lm(formula = log(1 + counts) ~ dates, data = outflu1.sub)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -0.7081 -0.3553 -0.1211  0.3675  0.9870
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept) -5.996e+03  7.855e+02  -7.633 1.77e-05 ***
## dates        3.340e-01  4.374e-02   7.635 1.77e-05 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.5231 on 10 degrees of freedom
## Multiple R-squared:  0.8536, Adjusted R-squared:  0.8389
## F-statistic:  58.3 on 1 and 10 DF,  p-value: 1.768e-05

Task

The summary() function provides a lot of detailed information on the statistical fit of the regression line – for the purpose of estimating \(R_{0}\) the key value is the estimated slope highlighted in bold above. Using the expression for the SIR model presented in the lectures calculate the \(R_{0}\) of outfluenza using this slope:

Solution

\(R_{0} = 1 + 0.335 \times 5 = 2.67\)

We can estimate the uncertainty in our estimate of \(R_{0}\) from the uncertainty in our estimate of the slope from the linear regression. The R function confint() will calculate 95% confidence intervals for our regression model:

confint(outflu1.fit)

##                     2.5 %        97.5 %
## (Intercept) -7745.8850733 -4245.5519457
## dates           0.2365213     0.4314554

Task

Use these confidence intervals to calculate a 95% confidence interval for your estimate of \(R_{0}\).

Solution

\(R_{0} = 2.67\) (95% CI, 2.1–3.1)

The incidence package has built in functions that simplify estimating the exponential growth rate. The base function is fit returns an incidence_fit object which returns details of the fit including the estimated exponential growth rate \(r\) and the confidence interval:

outflu1.fit2 <- fit(outfluenza1.i)
outflu1.fit2

## <incidence_fit object>
##
## $model: regression of log-incidence over time
##
## $info: list containing the following items:
##   $r (daily growth rate):
## [1] -0.0504102
##
##   $r.conf (confidence interval):
##            2.5 %      97.5 %
## [1,] -0.06954703 -0.03127338
##
##   $halving (halving time in days):
## [1] 13.75014
##
##   $halving.conf (confidence interval):
##         2.5 %   97.5 %
## [1,] 9.966597 22.16413
##
##   $pred: data.frame of incidence predictions (57 rows, 5 columns)

Question

Why does fit ignore dates with 0 incidence?

Answer

We are fitting a log-linear relationship and \(\log(0)\) is undefined.

The estimated \(r\) is much lower than we obtained by our manual estimate. To see what has happened we can add the obtained fit to a plot of the incidence:

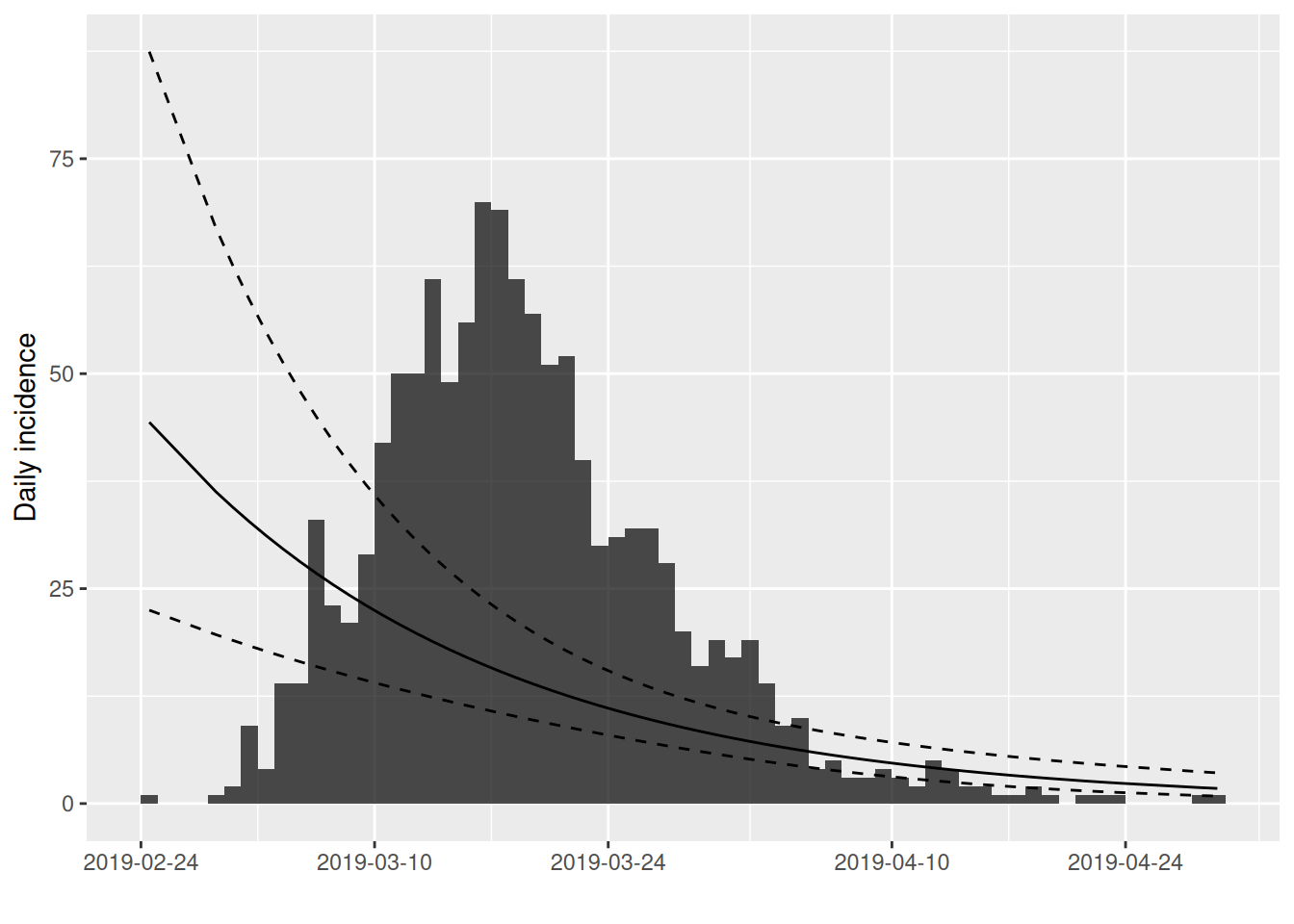

plot(outfluenza1.i, fit= outflu1.fit2)

We can use the subset function to limit our fit to the first 100 cases as before:

outflu1.sub = subset(outfluenza1.i,from=outfluenza1$x[1],to=outfluenza1$x[100])

outflu1.fit3 = fit(outflu1.sub)

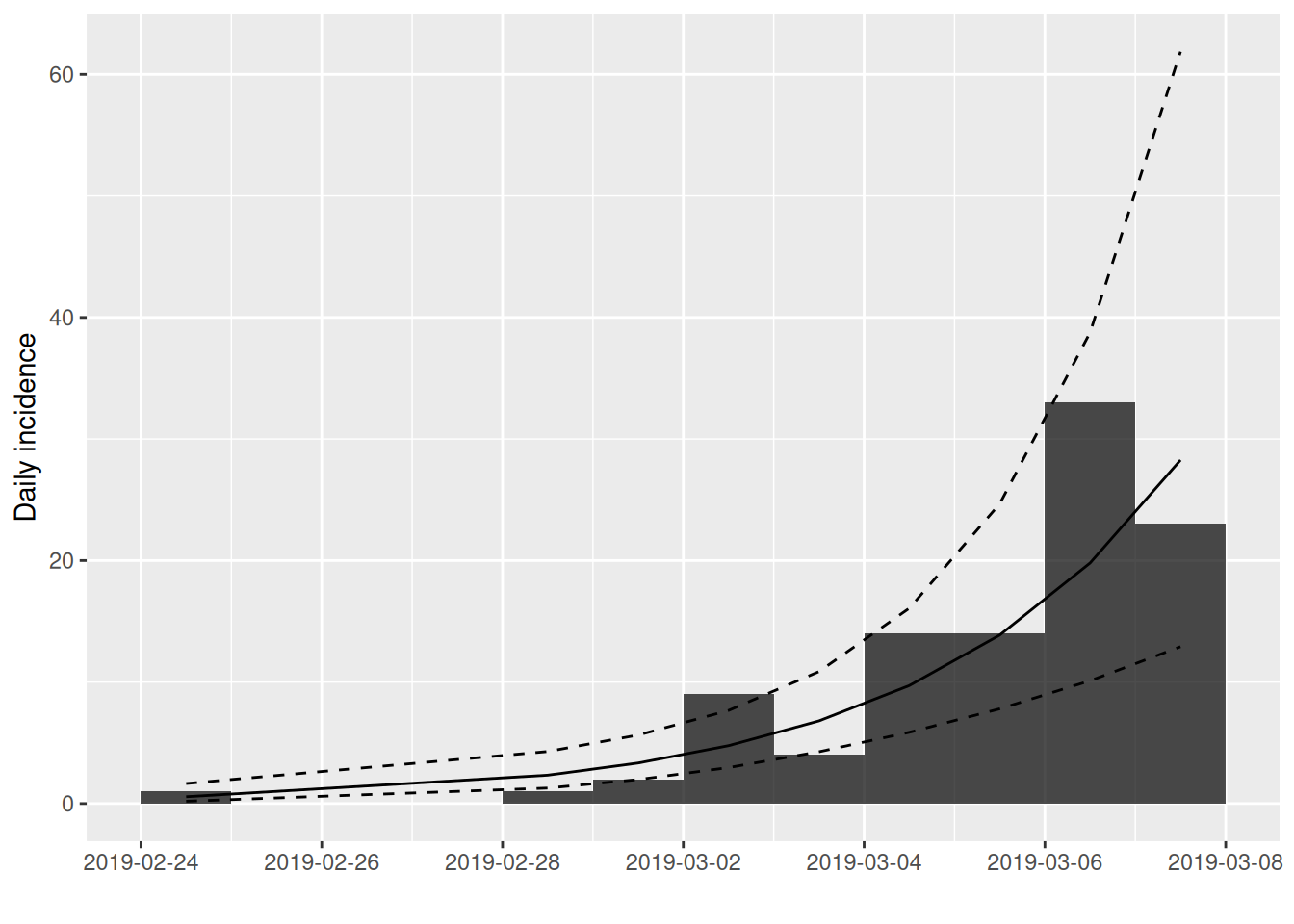

plot(outflu1.sub,fit=outflu1.fit3)

Question

How do the estimates from the incidence package and our manual estimate compare to each other and why (what’s different)?

Answer

outflu1.fit2 is clearly a poor fit to the exponential growth rate as we have not subsetted the data to the exponential phase. The point estimates from the incidence package and our manual estimate are pretty comparable, however the confidence intervals from our manual estimate are smaller (0.2–0.4 compared to 0.2–0.5) reflecting the effective smoothing we applied to the data by using the cumulative case counts instead of raw incidence. We could similarly smooth the time series by increasing the time interval to sum up incidence - this runs the risk of introducing artifacts to the data or giving us false confidence in our estimates.

The incidence package provides a method for automatically sub setting the data by finding the optimum fit of two log-linear models (minimising the squared error of both):

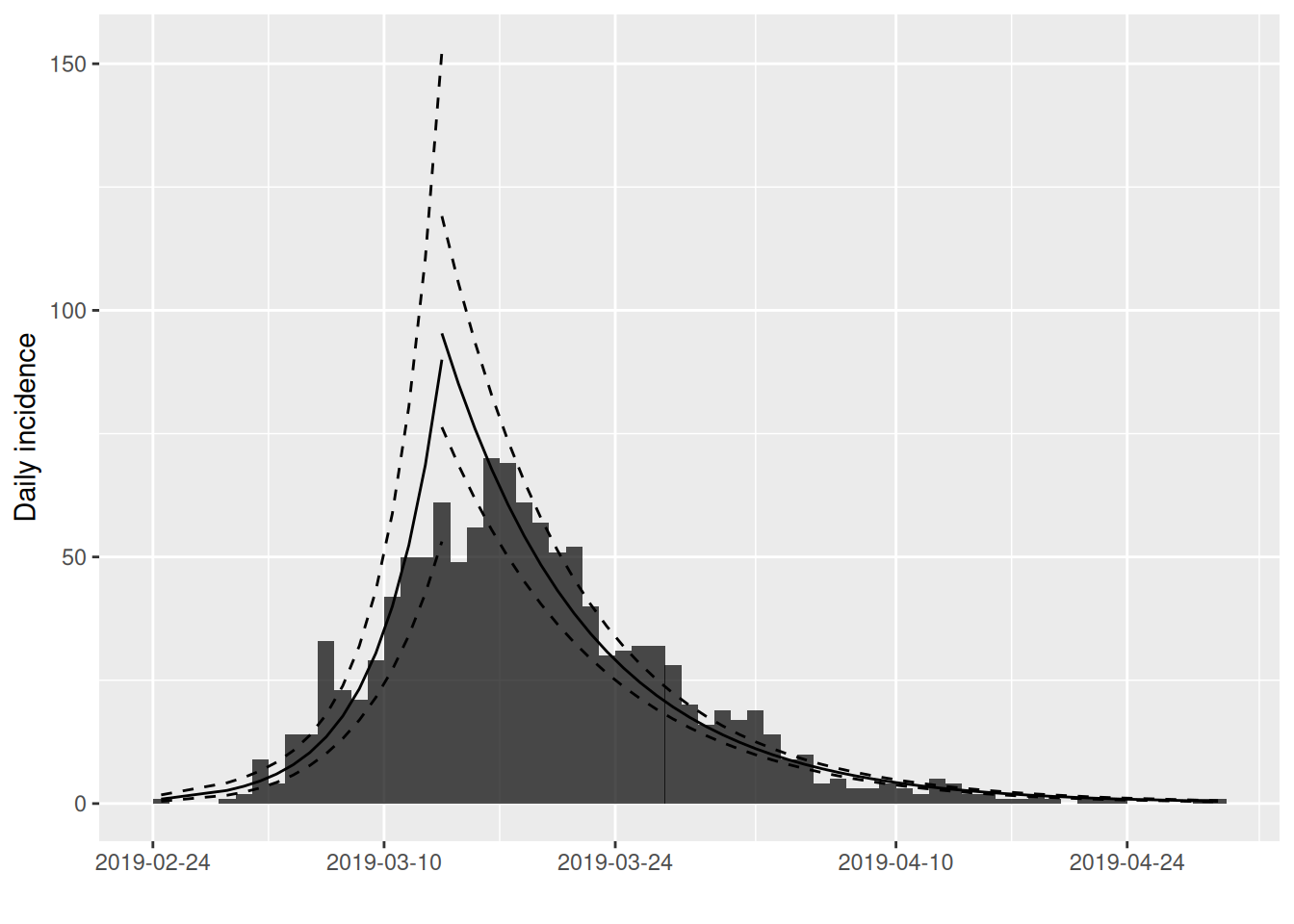

outflu1.fit5 = fit_optim_split(outfluenza1.i)
plot(outfluenza1.i,fit=outflu1.fit5$fit)

Note

The output of fit_optim_split now continues information on the two log-linear model fits, the first for the attack of the epidemic, the second describing the decay after the epidemic peak (which is also estimated as the changepoint between the two models).

Examine the output by entering into the R console:

outflu1.fit5

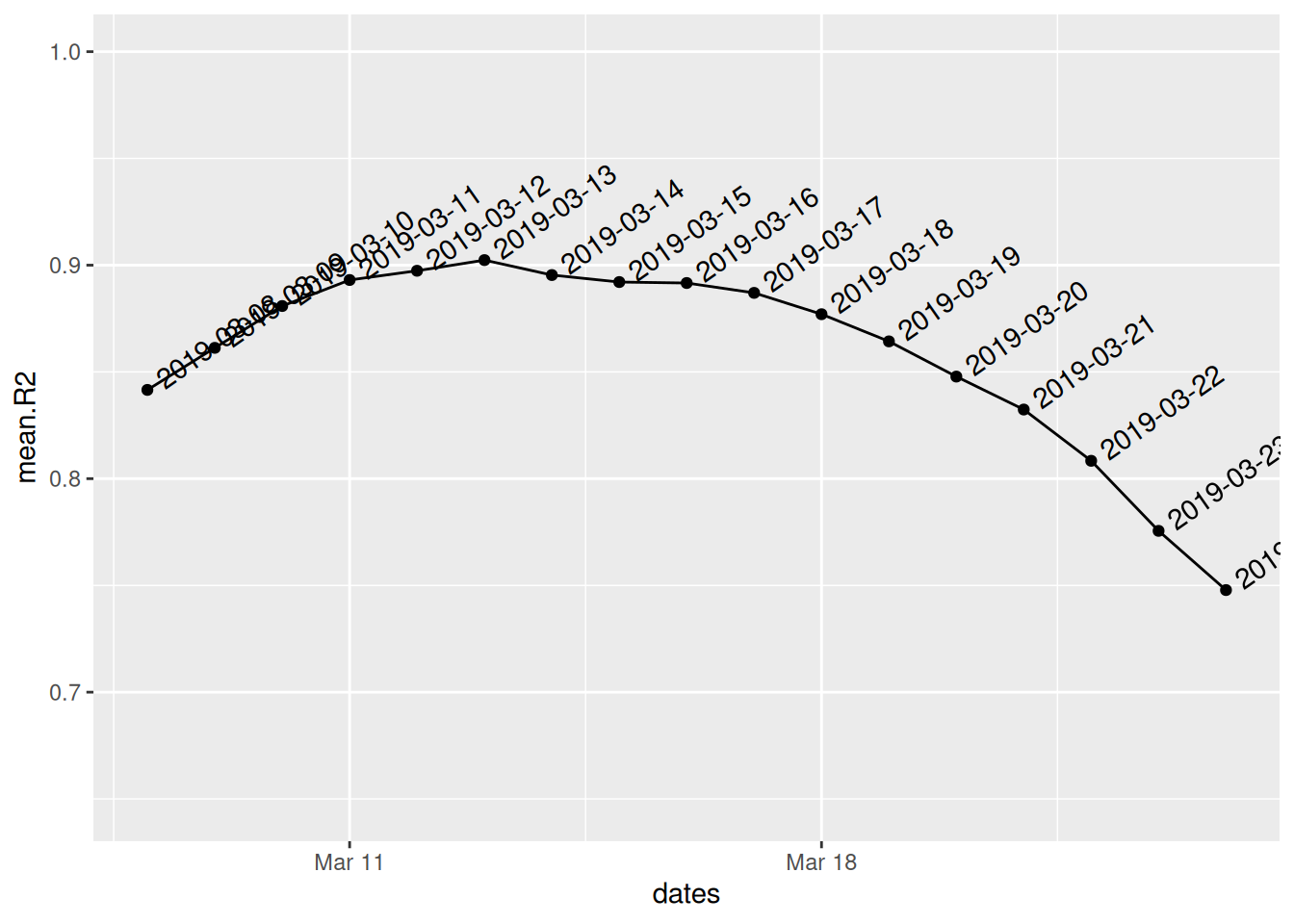

Which should also generate a plot of the mean r-squared error (\(R^2\)) of the two log-linear models against different dates for the changepoint:

11.4 RECON earlyR method

Finally we will use the earlyR package implementation of the Teunis and Wallinga method to estimate \(R_{0}\) and compare to the other methods. The key function of the earlyR package is the get_R function that returns an estimate of \(R_{0}\) when passed an incidence object and a serial interval distribution. The serial interval can be specified manually, but we will use the default gamma distribution which is parameterised by the mean (si_mean) and standard deviation (si_sd). For outfluenza, the serial interval distribution is exponentially distributed with mean equal to the variance (si_mean = 5, si_sd = 5).

library(earlyR)
estR = get_R(outfluenza1.i,si_mean=5,si_sd=5)
estR

##
## /// Early estimate of reproduction number (R) //
##  // class: earlyR, list
##
##  // Maximum-Likelihood estimate of R ($R_ml):
## [1] 1.001001
##
##
##  // $lambda:
##   NA 0.1812692 0.1484107 0.1215084 0.09948267 0.2627188...
##
##  // $dates:
## [1] "2019-02-24" "2019-02-25" "2019-02-26" "2019-02-27" "2019-02-28"
## [6] "2019-03-01"
## ...
##
##  // $si (serial interval):
## A discrete distribution
##   name: gamma
##   parameters:
##     shape: 1
##     scale: 5

Once again we have obtained a much lower estimate of \(R\) (\(R_{0} = 1.0\)) than expected as the earlyR method is only valid during the exponential phase of the epidemic. If we subset again using the first 100 cases you should obtain a more consistent estimate of \(R_{0}\) of 2.43.

We can calculated a boostrapped 95% confidence interval for the estimate using the sample_R function:

quantile(sample_R(estR), c(0.025, 0.975))

##      2.5%     97.5%
## 0.9557057 1.0663163

So our earlyR estimate of \(R_{0} = 2.43\) (2.0–3.0, 95% CI).

Task

Now we have introduced all of the methods, let’s compare the estimates (and confidence intervals where possible) of \(R_{0}\) for our three exemplar outbreaks. Complete the following table by adapting the code you have used in the practical.

Remember that for Outfluenza the mean serial interval is 5 days (standard deviation 5 days). For Biggles the latent period is 5 days, the exposed period is 5 days. As discussed in lectures, adding two exponentially distributed variables together gives a gamma distributed variable. So the serial interval for Biggles will be gamma distributed with a scale parameter of 10 days and a shape parameter of 2, giving a mean serial interval of 10 and standard deviation of \(5\sqrt{2}\). (Ask your instructor for more details if interested!)

Outbreak	Regression r	Regression \(R_{0}\)	Final Size \(R_{0}\)	earlyR \(R_{0}\)
Outfluenza1
Outfluenza2
Biggles

Task

Compare your estimates from the three methods of estimation. Are you surprised by the variability in estimates of \(R_{0}\) that you have obtained compared to the size of the 95% confidence intervals of the estimates?

Solution

The confidence intervals from our regression model capture the variability (scatter) in the model output around the best-fit line for this particular realisation of the epidemic model. Stochastic effects will generate far greater variability between realisations, which our linear model contains no information about. The uncertainty in the estimate of the slope will therefore typically underestimate the true variability in the epidemic model. The Likelihood function for the earlyR method includes more information on the variability of the serial interval derived from an epidemic model and better represents the true uncertainty in our estimates.

11.5 Appendix

You might be interested now in explore how well the final size and regression estimators perform on different stochastic replicates of the SIR or SEIR models.

SIRmodels.R and SEIRmodels.R files provide functions to allow you to generate your own simulated epidemics of Biggles and Outfluenza.

To load the functions into the R workspace using the following R code:

source('SIRmodels.R')
source('SEIRmodels.R')

N = 1300

SIRmodels.R provides two familiar functions:

• DetSIR.dyn

  Uses the internal R function lsoda() to numerically solve the deterministic SIR model given 5 parameters:

  • N: Population size
  • I0: Initial infected
  • B: transmission rate
  • M: “recovery” rate = \(1/T_{I}\) corresponding to average infectious period of \(T_{I}\)
  • f_time: run time for numerical solution

• create.StocSIR defines an stochastic SIR model to use with the SimInf package and takes 6 arguments:

  • N: Population size
  • I0: Initial infected
  • beta: transmission rate
  • m: “recovery” rate = \(1/T_{I}\) corresponding to average infectious period of \(T_{I}\)
  • f_time: run time for numerical solution
  • reps: number of replicates to simulate

SEIRmodels.R provides equivalent functions DetSEIR.dyn and StocSEIR.dyn that implement the deterministic and stochastic SEIR epidemic model respectively.

Both of these functions implementing the SEIR model take 7 parameters in the order that follows:

• N: Population size
• I0: Initial infected
• E0: Initial exposed
• B: transmission rate
• G: “progression” rate = \(1/T_{E}\), with average exposed period of \(T_{E}\)
• M: “recovery” rate = \(1/T_{I}\) corresponding to average infectious period of \(T_{I}\)
• f_time: run time for numerical solution

The deterministic equations for the SEIR are then:

\[ \begin{aligned} \frac{dS}{dt} &= -\frac{\beta SI}{N} \\ \frac{dE}{dt} &= \frac{\beta SI}{N} - gE \\ \frac{dI}{dt} &= gE -mI \\ \frac{dR}{dt} &= mI \end{aligned} \]

You can check this new code for the deterministic \(SEIR\) model by simulating an epidemic using the Biggles parameters from the lecture and comparing to the figures in the lecture notes:

# Biggles Examplar Epidemic

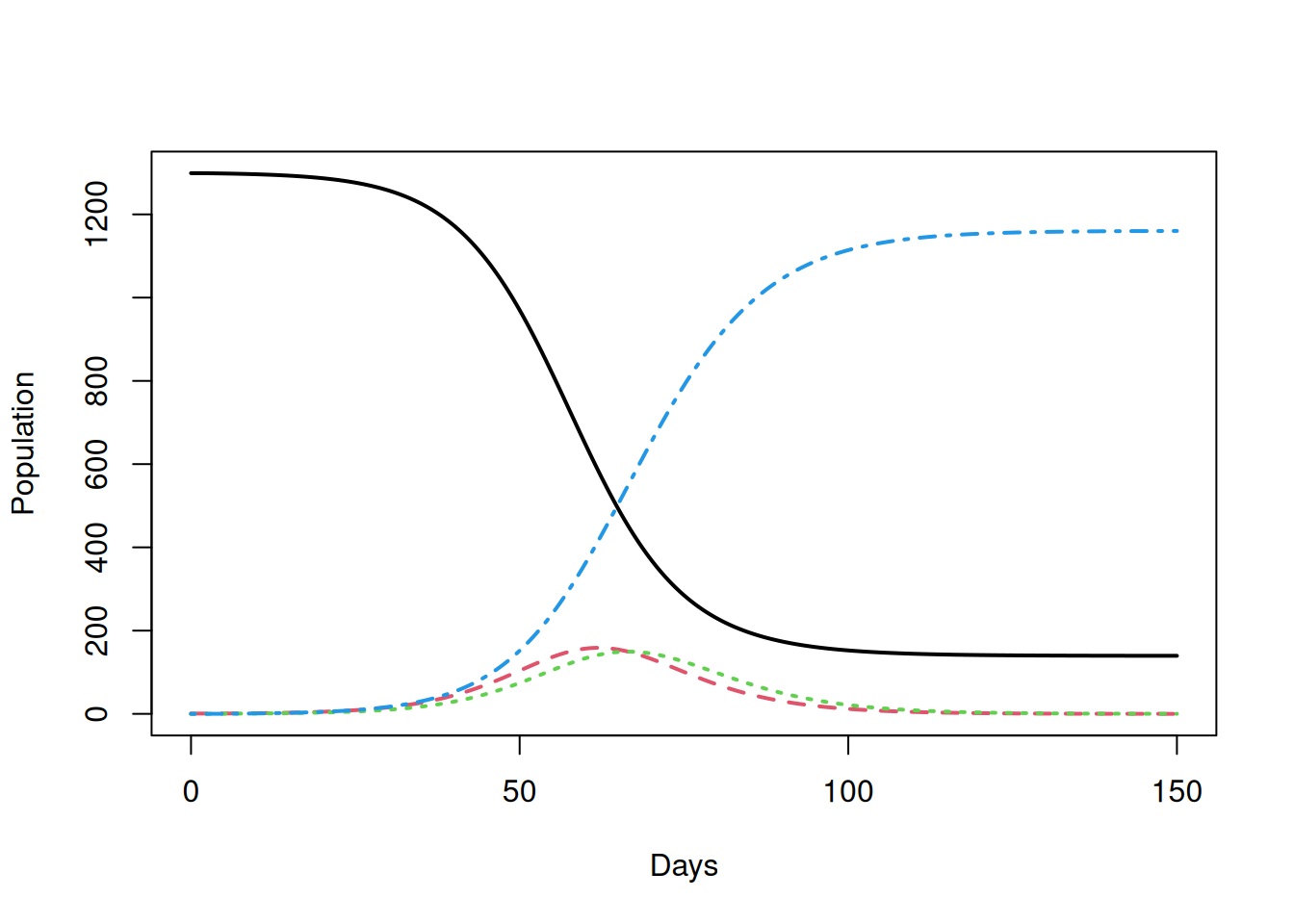

det.sol<-DetSEIR.dyn(1300, 1,0, 0.5, 1/5.0, 1.0/5.0, 150)
matplot(det.sol[,1],det.sol[,2:5],type='l',xlab='Days',ylab='Population',lwd=2)

Checking the stochastic model is more difficult as the output will be different every time we run it! As a first sanity check we can compare stochastic simulations to the deterministic epidemic, checking that they (roughly) scatter evenly around the “mean” behaviour:

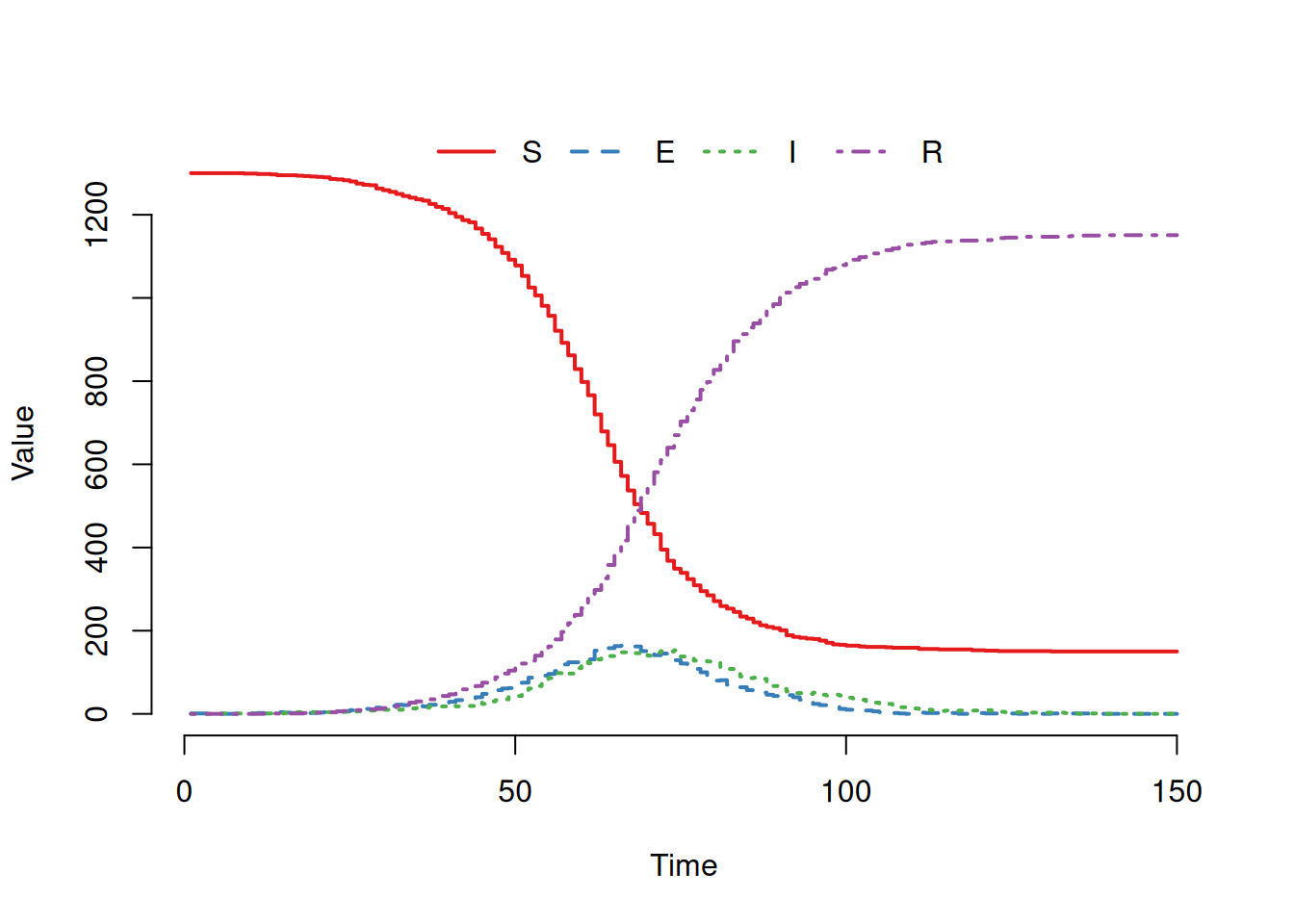

SEIRmodel <- create.StocSEIR(1300, 1, 0, 0.5, 1.0/5.0, 1/5.0, 150,1)
out <- run(model=SEIRmodel)
plot(out)

To simplify working with the incidence package we also provide a wrapper function line_list() that takes a SimInf object (out) as argument, along with a numeric value (node) and returns a line list of dates of cases for specified node:

SEIRmodel <- create.StocSEIR(1300, 1, 0, 0.5, 1.0/5.0, 1/5.0, 150,100)
out <- run(model=SEIRmodel)
line_list(out,1)
